Product Catalog
| Model No | Freq (GHz) | Gain (dB) | Pout (dBm) | PAE (%) | Power Consumption (V/A) | Encapsulation |
|---|---|---|---|---|---|---|
| XT3106 | 27~33 | 20 | 33 | 22 | 6/1 | Die/QFN6 |
| XT3109Q6 | 5~6 | 34 | 35 | 40 | 8/1.1 | QFN6 |

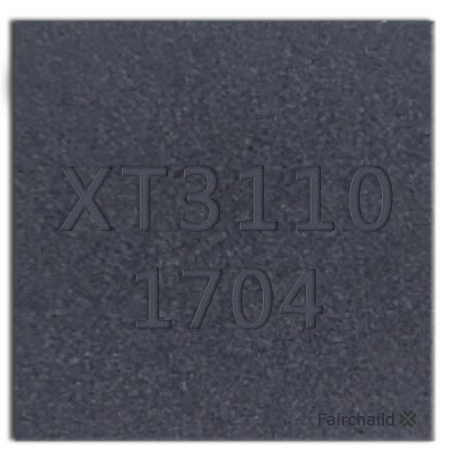

| XT3110Q6 | 13.5～14.75 | 29 | 38 | 30 | 7/2.25 | Die/QFN |
| XT3113 | 8.5～11 | 25 | 40.5 | 40 | 8/3 | Die |
| XT3114 | 8～12 | 25 | 39.5 | 33 | 8/3 | Die |
| XT3115 | 13.5～14.75 | 24 | 40 | 38 | 8/2.5 | Die |
| XT3116 | 13.5～14.75 | 33 | 38.5 | 35 | 7/2.3 | Die/QFN |
| XT3117 | 13.5～14.75 | 29 | 36 | 40 | 7/1.3 | Die/QFN6 |
| XT3118 | 27.5～32 | 27 | 35.5 | 18 | 6/2 | Die |
| XT3118Q6 | 27～30 | 26 | 35.5 | 20 | 6/2 | QFN6 |
| XT3119 | 5.5～6 | 22 | 36 | 40 | 5～8/0.9 | Die/QFN6 |
| XT3122Q4 | 0.001~3 | 25 | 30 | — | 12/0.24 | QFN |
| XT3124 | 33.5～36.5 | 25 | 35 | 20 | 6/2.5 | Die |
| XT3127Q6 | 28～31 | 23 | 35.5 | 22 | 6/3 | QFN |
| XT3127 | 28.5～32 | 25 | 35.5 | 23 | 6/2.5 | Die |
